- The steel plate frame is fully welded, heat-treated after welding to remove residual stress, and optimized with ANSYS finite element analysis for high rigidity and resistance to deformation under long-term heavy loads. The ram, worktable and side frames form an integrated structure for stable operation.
- Standard equipment includes a Bosch Rexroth hydraulic valve assembly and imported oil pump. The streamlined hydraulic circuit reduces failure points, while the cylinders connect directly to the ram for a short transmission path and direct bending force.
- A large-diameter, thickened torsion bar resists torsional deformation and keeps the ram parallel during batch bending. The machine is suitable for conventional carbon steel, stainless steel and aluminum sheet work.

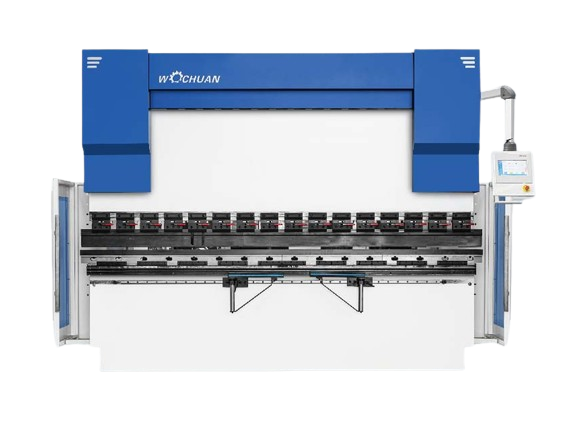

WC67K Series Technical Specifications
Specifications are based on the supplied WOCHUAN WC67K/WBN configuration sheet and should be confirmed against the final machine configuration.
Model
Nominal Pressure (kN)
Bending Length (mm)
Distance Between Columns (mm)
Throat Depth (mm)
Ram Stroke (mm)
Maximum Opening Height (mm)
Main Motor Power (kW)
Overall Dimensions (mm)
40T2500
400
2500
2000
260
100
400
5.5
2500 x 1200 x 1900
63T2500
630
2500
2000
300
120
410
5.5
2500 x 1350 x 2100
80T2500
800
2500
2000
310
120
410
7.5
2500 x 1400 x 2150
100T2500
1000
2500
2000
400
140
430
7.5
2500 x 1500 x 2200
100T3200
1000
3200
2600
400
140
430
7.5
3200 x 1500 x 2300
125T3200
1250
3200
2600
400
140
430
7.5
3200 x 1600 x 2350
125T4000
1250
4000
3400
400
140
430
7.5
4000 x 1600 x 2450
160T3200
1600
3200
2600
400
160
430
11
3200 x 1650 x 2800
160T4000
1600
4000
3400
400
160
430
11
4000 x 1650 x 2800
200T3200
2000
3200
2600
400
160
430
15
3200 x 1650 x 2800
200T4000
2000
4000
3400
400
200
480
15
4000 x 1650 x 2800
250T3200
2500
3200
2600
450
200
480
18.5
3300 x 2100 x 3150
250T4000
2500
4000
3400
450
250
480
18.5
4000 x 2100 x 3150
300T6000
3000
6000
4900
500
250
510
18.5
6000 x 2200 x 3200
400T6000
4000
6000
4900
550
300
560
30
6000 x 2400 x 3200
500T6000
5000
6000
4900
600
320
580
30
6000 x 2700 x 3200
Standard Equipment
- ESKT CNC system
- Siemens main motor
- First hydraulic oil pump
- Taiwan hydraulic valve assembly
- Taiwan HAWKKING ball screw and linear guide
