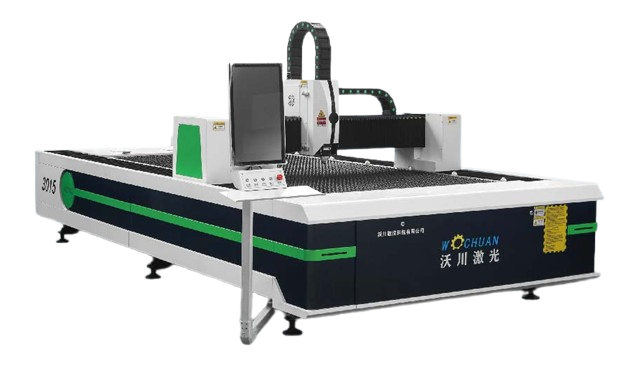

- The open-frame fiber laser cutter provides unrestricted access to the work area. Operators can load and unload sheet from the front or sides, and extra-long plate can extend beyond the worktable when required.
- A stress-relieved integrated welded bed, dual-servo gantry drive and optional 1,000 W to 12,000 W laser source provide fast, precise cutting of carbon steel, stainless steel, aluminum and galvanized sheet.
- Its accessible layout, practical investment level and straightforward maintenance suit sign making, small sheet-metal parts and guardrail production. The machine can be paired with a QC12K shear and WC67K press brake for a compact metal-processing line.
Open Type Fiber Laser Technical Specifications
Specifications are based on the supplied WOCHUAN configuration sheet and may be finalized with the confirmed machine configuration.
Model
Laser Source Power (W)
Cutting Range (mm)
Minimum Cutting Line Width
Repeat Positioning Accuracy
Operating Voltage
Machine Size (mm)
3000W-3015
3000
3000 x 1500
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
4500 x 2300
3000W-4020
3000
4000 x 2000
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
5500 x 2800
3000W-6015
3000
6000 x 1500
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
7500 x 2300
6000W-3015
6000
6000 x 1500
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
4500 x 2300
6000W-4020
6000
4000 x 2000
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
5500 x 2800
6000W-6020
6000
6000 x 2000
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
7500 x 2300
Standard Equipment
- Fiber laser source: Raycus or MAX
- Cutting head: Jiaqiang or WSX
- BOCHU control system
- Inovance servo motor
- HIWIN linear guide
- Water chiller: S&A or Tongfei
- Schneider electrical components
- Optional external dust extraction system
