- The bed is fabricated as a monolithic structure from thick steel plate and receives high-temperature stress-relief annealing after welding. The lightweight, high-strength gantry balances movement speed with structural rigidity for stable long-term operation.
- The fiber laser source provides high electro-optical conversion efficiency, low energy consumption, stable beam quality, a fine spot and a long maintenance-free operating cycle.
- A capacitive height-following cutting head monitors sheet variation in real time and adjusts nozzle height automatically. Intelligent collision protection helps reduce the risk of impact damage.

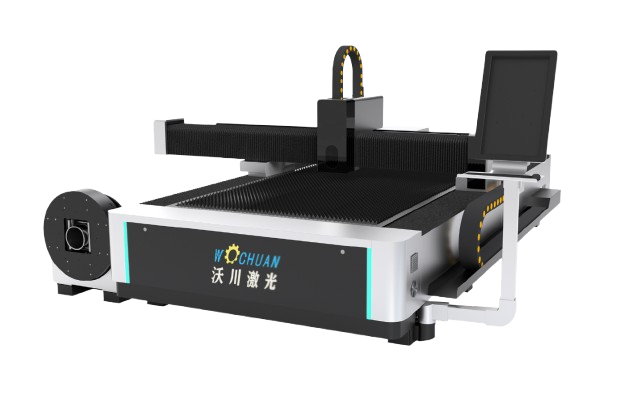

Board One Fiber Laser Technical Specifications
Specifications are based on the supplied WOCHUAN configuration sheet and may be finalized with the confirmed machine configuration.
Model
Laser Source Power (W)
Cutting Range (mm)
Minimum Cutting Line Width
Repeat Positioning Accuracy
Operating Voltage
Machine Size (mm)
3000W-3015
3000
3000 x 1500
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
4500 x 2300
3000W-4020
3000
4000 x 2000
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
5500 x 2800
3000W-6015
3000
6000 x 1500
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
7500 x 2300
6000W-3015
6000
6000 x 1500
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
4500 x 2300
6000W-4020
6000
4000 x 2000
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
5500 x 2800
6000W-6020
6000
6000 x 2000
0.2 mm (for material thickness up to 0.4 mm)
+/- 0.02mm/m
380 V / 50 Hz
7500 x 2300
Standard Equipment
- Fiber laser source: Raycus or MAX
- Cutting head: Jiaqiang or WSX
- BOCHU control system
- Inovance servo motor
- HIWIN linear guide
- Water chiller: S&A or Tongfei
- Schneider electrical components
