- The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.
- Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.
- Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
- The stroke of cylinder ( Y1,Y2 ) and back gauge ( X, Y, Z ) are computer controlled. The back guage adopt ball screw and rolling guideway, ensuring a high accuracy of repetition.
- Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.

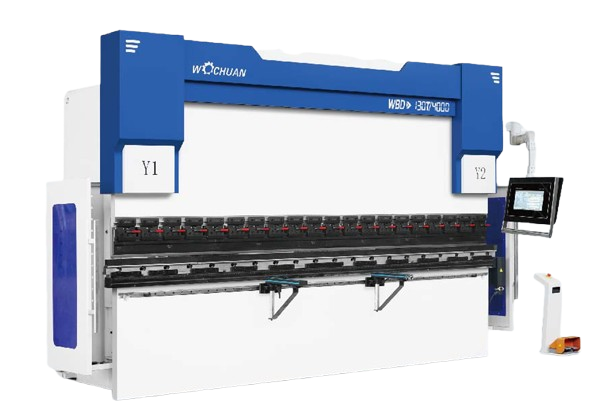

WBD Series Technical Specifications
Specifications are based on the supplied WOCHUAN configuration sheet and may be finalized with the confirmed machine configuration.
Model
Nominal Pressure (kN)
Bending Length (mm)
Distance Between Columns (mm)
Throat Depth (mm)
Ram Stroke (mm)
Max Open Height (mm)
Main Motor Power (kW)
Overall Dimensions (mm)
50T/1600
500
1600
1200
260
110
400
5.5
1600 × 1300 × 2200
70T/2500
700
2500
2000
300
160
430
7.5
3000 × 1400 × 2400
80T/2500
800
2500
2000
300
180
450
7.5
3000 × 1500 × 2600
110T/3200
1100
3200
2600
400
200
480
7.5
3800 × 1600 × 2600
125T/3200
1250
3200
2600
400
200
480
11
3800 × 1600 × 2600
130T/3200
1300
3200
2600
400
200
480
11
3800 × 1600 × 2600
130T/4000
1300
4000
3400
400
200
480
11
4800 × 1700 × 2600
170T/3200
1700
3200
2600
400
200
480
15
3800 × 1700 × 2700
170T/4000
1700
4000
3400
400
200
480
15
4800 × 1800 × 2700
220T/3200
2200
3200
2600
450
200
480
18.5
3800 × 1800 × 2800
220T/4000
2200
4000
3400
450
250
480
18.5
4800 × 1900 × 2800
250T/4000
2500
4000
3400
450
250
480
22
4800 × 2000 × 2800
300T/4000
3000
4000
3400
500
250
510
22
4800 × 2100 × 2900
300T/6000
3000
6000
4900
500
250
510
22
6800 × 2200 × 2900
400T/4000
4000
4000
3400
550
300
580
30
4800 × 2200 × 3000
500T/6000
5000
6000
4900
600
320
580
37
6800 × 2500 × 3300
600T/6000
6000
6000
4500
600
320
520
45
6800 × 2500 × 3300
Standard Equipment
- CNC DELEM DA53T with 2D colour graphics
- Main Motor Siemens Germany Brand
- Hydraulic System BOSCH-REXROTH Germany Brand
- Grating Rule GIVI Italy Brand
- Foot Pedal Pizzato Italy Brand
- Sunny hydraulic oil pump
- X, R, Z1, Z2-Axis with HIWIN linear guide and Ball Screw
- Standard BGA-2 for X, R-axis ( X=600mm,R=200mm)
- Electrical System Schneider France Brand
