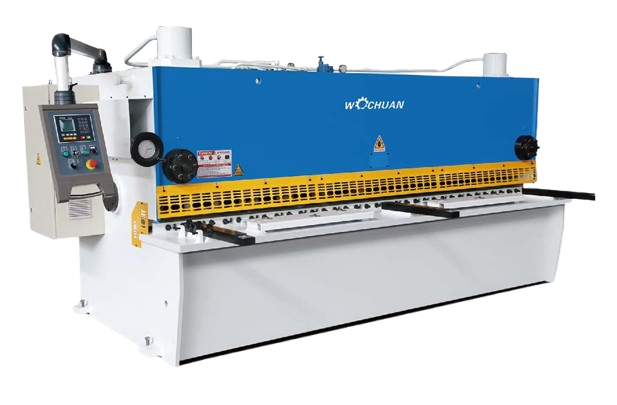

- QC11K Series is a vertical guillotine-type CNC shearing machine.
- The heavy welded frame is stress relieved to maintain long-term rigidity.
- The vertical cutting movement produces a perpendicular cut and clean finish. Adjustable shear angle and blade clearance support different plate thicknesses.
- The machine is equipped with a servo CNC backgauge, four-edge reusable rectangular blades and an integrated hydraulic system.
QC11K Series Technical Specifications
Specifications are based on the supplied WOCHUAN configuration sheet and may be finalized with the confirmed machine configuration.
Model
Cutting Thickness (mm)
Cutting Length (mm)
Backgauge Range (mm)
Strokes per Minute
Shear Angle (deg)
Main Motor Power (kW)
Overall Dimensions (mm)
6 x 2500
6
2500
20-600
>= 20
0.5-2
7.5
3270 x 1580 x 2040
6 x 3200
6
3200
20-600
>= 15
0.5-2
7.5
3820 x 1580 x 2100
6 x 4000
6
4000
20-600
>= 13
0.5-2
7.5
4620 x 1630 x 2160
7 x 7000
7
7000
20-800
>= 6
0.5-2
11
7530 x 2075 x 2830
8 x 2500
8
2500
20-600
>= 20
0.5-2
11
3270 x 1580 x 2040
8 x 3200
8
3200
20-600
>= 15
0.5-2
11
3820 x 1580 x 2100
12 x 2500
12
2500
20-800
>= 10
0.5-2.5
18.5
3100 x 2000 x 2100
12 x 3200
12
3200
20-800
>= 8
0.5-2.5
18.5
3800 x 2000 x 2450
12 x 4000
12
4000
20-800
>= 7
0.5-2.5
22
4600 x 1960 x 2510
13 x 8000
13
8000
20-800
>= 6
0.5-2.5
30 x 2
8600 x 2900 x 3100
16 x 2500
16
2500
20-800
>= 10
0.5-2.5
22
3450 x 2010 x 2350
16 x 3200
16
3200
20-800
>= 8
0.5-2
22
3940 x 1960 x 2400
16 x 4000
16
4000
20-800
>= 7
0.5-2.5
22
4750 x 2010 x 2640
Standard Equipment
- CNC system options: E21S, DAC310 or DAC360
- Bosch Rexroth hydraulic valve assembly
- Sunny hydraulic oil pump
- EMB hydraulic pipe fittings
- Siemens main motor
- HIWIN linear guides and precision ball screws
- Schneider electrical system
